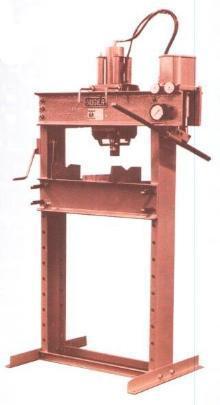

NUGIER HYDRAULIC PRESS
While capacity requirements vary somewhat in different shops, 40-ton hydraulic presses are the most popular choice for today’s service repair departments. Basic tooling on all units includes two table parallels and two “V” blocks. All 40-ton presses have slots in uprights to permit fork tube straightening.
FEATURES
-
EASY TO USE: Self-locking table winch for easy table height adjustments.
-
FASTER OPERATION: Multiple-speed pumps permit faster ram speeds results in fewer strokes which advances the ram further per stroke. Saves time!
-
OVERLOAD SAFETY PROTECTION: Maximum-capacity relief valve and ram-travel limit valve are hydraulic safety features incorporated on all units.
SPECIFICATIONS
| Capacity Tons | 40 |
| Method of Operation | Hand |
| Ram Travel | 14" |
| Number of Ram Speeds | 2 |
| Min. Number of Strokes (per inch) | 3-1/4" |
| Width Between Uprights | 30-1/4" |
