Winona Van Norman/Serv-Equip Honing Machine PS1370 – MotorcycleLifts.com

Winona Van Norman/Serv-Equip Honing Machine PS1370

$8,950.00

SKU: PS1370

WINONA VAN NORMAN CYLINDER HONING MACHINE

The PS1370 Power Stroke Cylinder Honing Machine is an ideal machine for the motorcycle/small engine shop. Filling an important need of powersports dealers and machine shops, this power-stroking machine hones cylinders with controlled accuracy. Utilizing a clean, recirculating, 8 gallon, oil-bath environment, the machine helps the operator produce a consistent RMS surface finish every time. It detects and corrects tapered bores, while taking the work out of honing piston clearance.

The 819216 Friction Feed Head is required

STANDARD EQUIPMENT
1015 Honing Oil Pump
1313 Work Light
1374 1/2” Jacobs Chuck Kit
6114 Small Engine Fixture

OPTIONAL EQUIPMENT

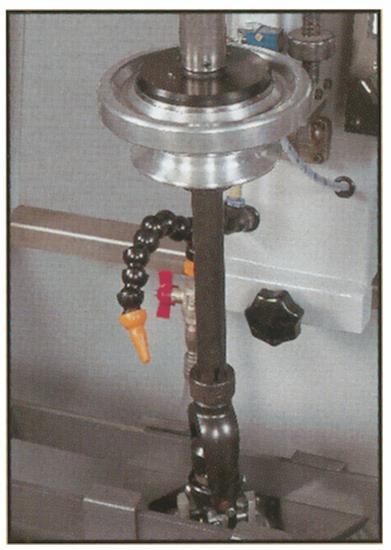

819216 AN Style, Friction Feed Hone Head w/ dual friction feed (2.5” – 5.5”) - (Required)
819239 SN/JN Style, Friction Feed Hone Head (1.75” – 2.6”) - (head only) (CALL TO ORDER)
860070-1 SN/J10 Style, Jr. Midget Manual Hone (1.25” – 1.77”) - (order with number 1374 Jacobs Chuck Adapter & number 1375-1 Chuck Key)(CALL TO ORDER)

SPECIFICATIONS
• HONING RANGE: (Max.) 1.25” (31.75mm) – 5.5” (139mm) (with optional Hone Heads)
• STROKE: Adjusts to 10” (254mm)
• MOTOR: 1/2 HP, 115V
• AIR REQUIREMENTS: 110 psi, at 3 cfm
• MACHINE DIMENSIONS: 32”w x 44”d x 60”h
