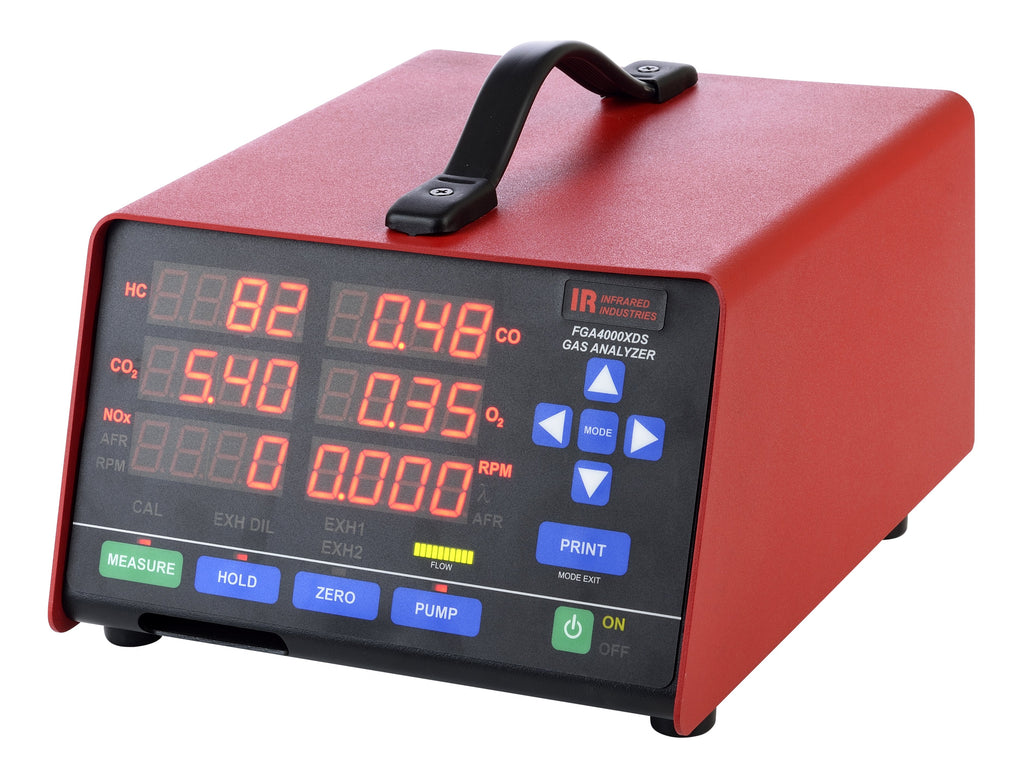

Infrared Industries FGA4000XDS Exhaust Gas Analyzer

$4,190.00 $3,495.00

SKU: FGA4000XDS

FGA4000XDS - Gas Analyzer, INCLUDES: 4 Gas, HC, CO, CO2, O2. 110V, (INCLUDES: LINE CORD, POWER SUPPLY, SAMPLE HOSE, SAMPLE PROBE, SAMPLE PROBE HANDLE, MANUAL) (Optional equipment includes: Fifth gas NOx transducer, 8 analog output connection module, Induc P/U Lead for RPM, Serial Cable for PC, Software for display and logging, Extended 2yr wtty.)

When you need a reliable gas analyzer that can accurately speed up your emissions, tune-ups and diagnostics testing, Infrared Industries FGA4000XDS is the perfect answer. By offering immediate results in seconds, the FGA4000XDS Gas Analyzer is the fastest machine on the market. Certified to BAR and OIML standards, this gas analyzer provides a portable, accurate and quick solution for every tune-up and automotive mechanic shop.

The FGA4000XDS measures up to five gases including Hydrocarbons (HC), Carbon Monoxide (CO), Carbon Dioxide (CO2), Oxygen (O2), and optionally Oxides of Nitrogen (NOX). With the analyzer’s six super-bright, oversized LED displays, it makes it easy to see and read. The FGA4000XDS features a bright display where they can be read from 25 feet away in dark or sunlit environments. So diagnose or tune virtually any fuel-related issue in an accurate and fast pace and provide the service that your customers need from this top performing gas analyzer.

The FGA4000XDS will instantaneously calculate readings and give you Air to Fuel Ratio (AFR), Lambda, Grams per Mile (GPM) or Grams per Kilometer (GPK) in real time. When attached to a tachometer (optional), it reads engine speeds of up to 30,000 RPM. The optional printer allows shop owners to print their shop name, address and create other custom header text from diagnostics tests providing a printed record for customers’ records.

For those seeking performance tuning, an optional analog output allows the connection of a dynamometer, chart recorder or data acquisition console to conveniently display all essential information on a single monitor.

The FGA4000XDS can measure exhaust gases from two tail pipes and gives you the average reading, or can set up an exhaust dilution value to warn you if there are air leaks in the exhaust system. This feature will warn you anytime when there is a leak in your muffler or when a probe is not fully inserted in the tailpipe.

The FGA4000XDS is a cost-effective, all-in-one performer making it the perfect trouble-shooting tool for your diagnostic needs. Automotive, motorcycle or any exhaust emissions are ideal applications where detection of up to 5 different gases is required.

General Specifications
Display Six windows with 0.8" super-bright 4-digit LEDs
Displays HC, CO, CO2, O2, NOX, AFR, λ, kRPM, and GPM user-selectable
Gases measured HC, CO, CO2 - Non-dispersive Infrared (NDIR)
O2, (OPTIONAL: NOX - Electrochemical Cell)
Particle filter Coalescent media, field replaceable
Water filter True positive screen, field replaceable; continuous water separation
Certifications BAR-90 certified
Meets BAR-97 performance specifications
Canada's AirCare Certified
Meets or exceeds OIML Class I Gas standards
Warm-up time Five minutes or less
Response time Approximately 2 seconds
AC power 110V AC - 220V AC ± 10%, 50 Hz - 60 Hz
0.5A, 0.3A max
AC voltage range 90V - 240V
DC power 10V DC - 16V DC
1.5A nominal, 3.5A max
Weight 9 lbs. (4.1 kg)
Size (W x L x D) 13.2" x 10.8" x 6.5" (33.5 cm x 27.4 cm x 16.5 cm)
Temperature 35.6° F to 113° F (2° C to 45° C) Operating
-40° F to 167° F (-40° C to 75° C) Storage
Interface Eight analog outputs
Choice of: 0-1V DC, 0-5V DC, or 0-10V DC
RS232 with custom protocol
DLL provided upon request
Gases and Ranges (within 1% full-scale accuracy)
Hydrocarbons (HC) (n-Hexane) 0 - 10,000 ppm
Carbon Monoxide (CO) 0 - 10%
Carbon Dioxide (CO2) 0 - 20%
Oxygen (O2) 0 - 25%
Oxides of Nitrogen (NOx) 1 - 5,000 ppm
Tachometer (TACH) 0 - 30,000 rpm (displayed as krpm = 1,000 rpm)
Air to Fuel Ratio (AFR) 0 - 50%
Lambda (λ) 0 - 5
Grams per Mile (GPM)
Grams per Kilometer (GPK)
Optional Motorcycle Fittings 2, 4, and 6 cylinder manifolds
6 mm fitting for Honda, Yamaha, or Kawasaki
10 mm fitting for Ducati
Optional Software Dynamic Link Library (DLL) for custom software development
Menus in plain English
Easy-to-use, menu-driven, Windows-based IRI Display Software
Accessories Included Optional
Oxygen sensor x
Flexible probe x
25' sampling hose x
AC power adapter x
Operator's Manual x
Quick Start Guide x
Internal/external printer x
NOx sensor x
Inductive tachometer pick-up x
12V DC cable x
2-shelf rolling cart x
One year standard warranty x
Extended warranty x
